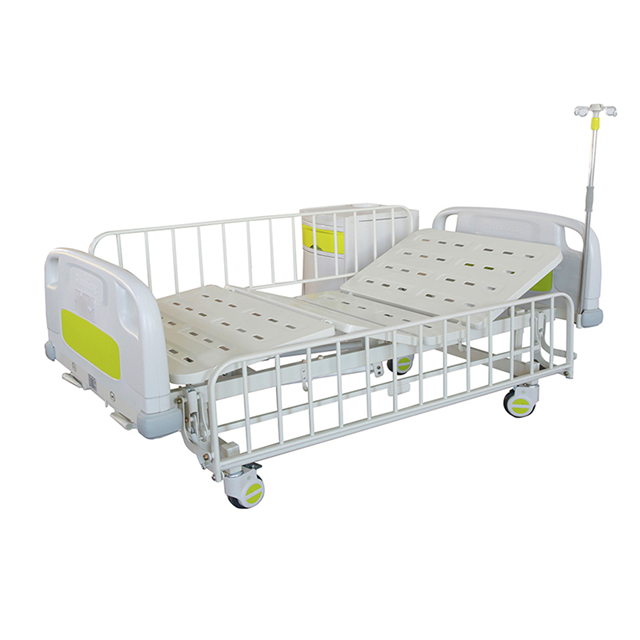

Product Name : 2 Function ISO9001 Rest Lifting Manual Crank Hospital Bed
It is a hospital bed or hospital cot specially designed for hospitalized Children in need of some form
of health care. These beds have special features both for the
comfort and well-being of the children and for the convenience of
health care workers. Common features include adjustable height for
the head, and the feet, adjustable side rails, and electronic
buttons to operate the bed .
Hospital beds and other similar types of beds such as nursing care beds are used not only in hospitals, but in other health care
facilities and settings, such as nursing homes, assisted living facilities, outpatient clinics, and in home health care.
ABS plastic head and foot panels are produced by Injection Moulding
plastic technology, allowing for easy removal when in an emergency.
Technical Specification
The 2 function Electric Pediatric bed is a flower bed offers the
backrest and knee lifting and down adjustment.
- Backrest lifting
- knee-rest lifting
Model: HK-N209Z
External Dimension: L2160*W970*H500MM
Technical Specification :
| Main Function | Standard Accessories | Optional |
| A.Back section up/down:0-75±2° | PP Head & Foot Board x 1 Pair | Beside Cabinet |
| B.Knee section up/down:0-50±2° | Embedded Steel Side Rails x 1 pair | ABS Dinner Panel |
| Self-lubricating Cranking System x 4 set | Over Bed Table |
| Wheels with Central Brake System x 4pc | Attendant Control panel(ACP) |
| Central brake lock pedal x1 pc | Nursing Chair |
| IV Pole x 1pc | Mattress |
| IV Pole Holder x 6pc | Green color |
| ABS Drainage Hook x 4pc | Pink color |
| Storage Rack x 1pc | Blue color |
| | Wooden color |
| | |
Features:
1) Overallsize (L*W*H): 1900*980*500mm
2) Durable frame: made of cold-rolled steel plate, treated by
electrocoating
and powder-coating
3) Detachable ABS head & foot board
4) Quiet and robust electric actuators provide reliable operation
5) Remote handset control of all electrically operated functions
and movements
6) Fully tested sturdy contruction capable of taking a maximum user
weight of up to 250kg
7) Central-controlled braking system
11) Double-side silent wheels,φ125mm,
12) 2 T-Motion motors
13) With one ss height adjustable I.V pole, with Drainage hook
